Panora
Retractable Glass Wall SystemPanora Retractable Glass Walls are redefining modern architectural design. Engineered for expansive openings, these innovative vertically retractable glass walls deliver panoramic, unobstructed views while blending seamlessly with existing structural supports. Elevate your space with the cutting-edge Panora retractable glass wall systems, where form meets function and boundaries disappear.
4 Variations to Suit Your Need
- Door systems retract up to create an entry point (with no additional ceiling space required)
- Window systems retract down to create a built-in balustrade that lets the fresh air in without creating an egress.
- Multiple Levels of Insulation
- 2, 3, 4 Panels
Max
GULCost-effective system, where extreme thermal insulation is not a priority, and cost is!

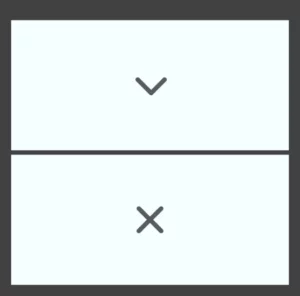

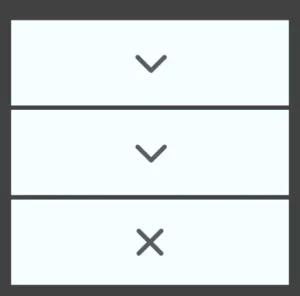

2 or 3 frames (50%, 66% opening) for Window, Door or Countertop
Sizes 11.5 feet width x 11.5 feet in height, operable frame weigh up to 420 lbs
New or retrofit installation with ease
Non-thermally broken structural and window frames
Frames will accept Single or IG of up to 0.8 inches
Maxi
GUMResidential & Commercial use, excellent weather & thermal performance
2, 3 or 4 frames (50%, 66% or 75% opening) for Window or Door
Sizes 16 feet width x 16.3 feet in height, operable frame weigh up to 1,450 lbs
New or retrofit installation with ease
Thermally broken structural, motor box, and window frames
Frames will accept Single or IG of up to 1.26 inches
Maxi
GUFCurtain wall, Residential & Commercial use, excellent weather & thermal performance
2 configurations (50% opening) for Window or Door
Sizes 16 feet width x 14.8 feet in height. Operable frame weigh up to 1210 lbs
New or retrofit installation with ease
Thermally broken structural, motor box, and window frames
Frames will accept IG of up to 1.5 inches, 1.3(W/m2K) with 0.8Ug triple glass option
Maxima
GUGScrew drive system for large span & heavy weight glazing, excellent weather & thermal performance
4 configurations, 3 or 4 frames (66% or 75% opening) for Window or Door
Sizes 16 feet width x 16.3 feet height, operable frame weigh up to 2200 lbs
New or retrofit installation with ease
Thermally broken structural, motor box, and window frames
Frames will accept IG of up to 1.5 inches, 1.3(W/m2K) with 0.8Ug triple glass option
